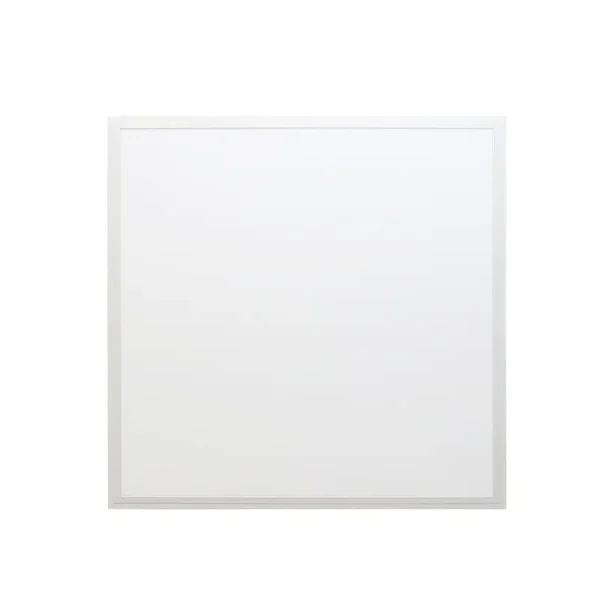

A11-GNN Series | High-Lumen 8,800lm Backlit Panels for Maximum Commercial Coverage

A11-GNN is a high-lumen, wide-voltage backlit panel light built for large-scale commercial rollouts and price-sensitive specifications that demand maximum light output per fixture, delivering the highest lumen output in the backlit panel range at a practical entry-level price point.

  • Brightest 2×4FT in the Range: A11-GNN 2×4FT delivers 8,800 lm at 100W, the highest output in the backlit lineup, reducing fixture quantity for large projects.
  • 110 Lm/W Across All Formats: Consistent 110 Lm/W on 50W (2×2FT / 1×4FT) and 100W (2×4FT), simplifying energy planning across mixed layouts.
  • One SKU for Global Markets: Surface versions support 100–265V; recessed versions 165–265V, covering most international grid standards.

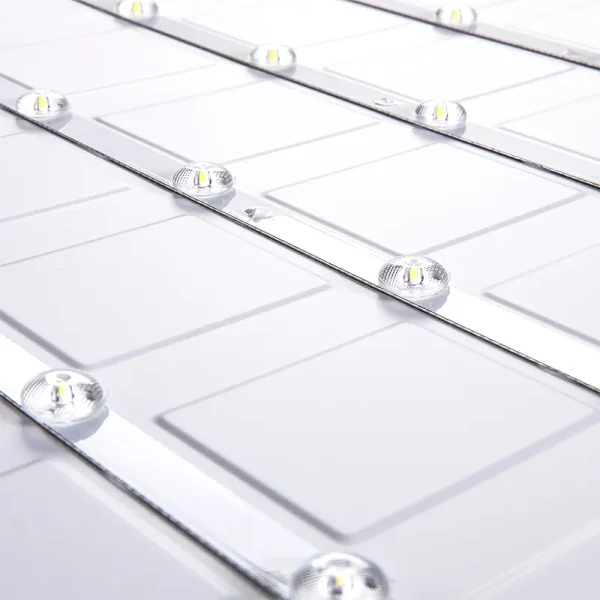

  • Tight Batch Consistency: Smalite chips, SDCM ≤5, CRI ≥80 ensure uniform color matching across ceiling grids.
  • Comfortable Commercial Lighting: UGR <22 and flicker-free, ideal for retail floors, warehouses, circulation areas, and commercial interiors.
  • Fixed CCT + Tri-CCT Option: Standard fixed CCT, with optional DIP tri-CCT (3000K / 4000K / 6500K) for flexible ambiance control.

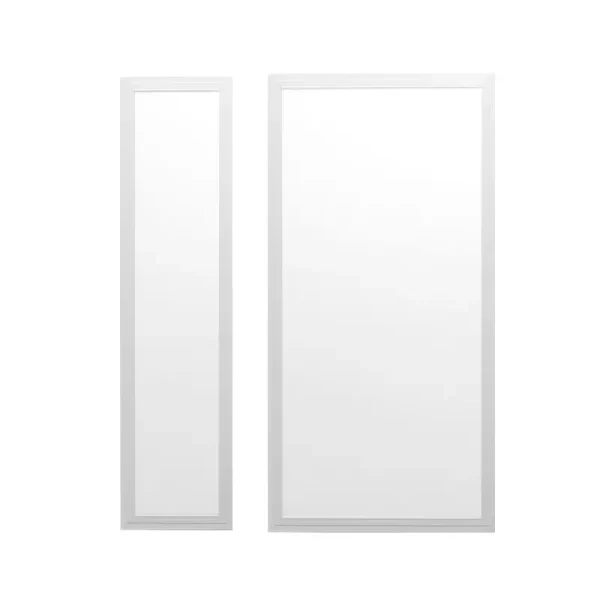

  • Fits All Standard Ceiling Grids: Available in 595, 600, 603, 620mm square sizes, plus 1×4FT and 2×4FT options, recessed or surface-mount.

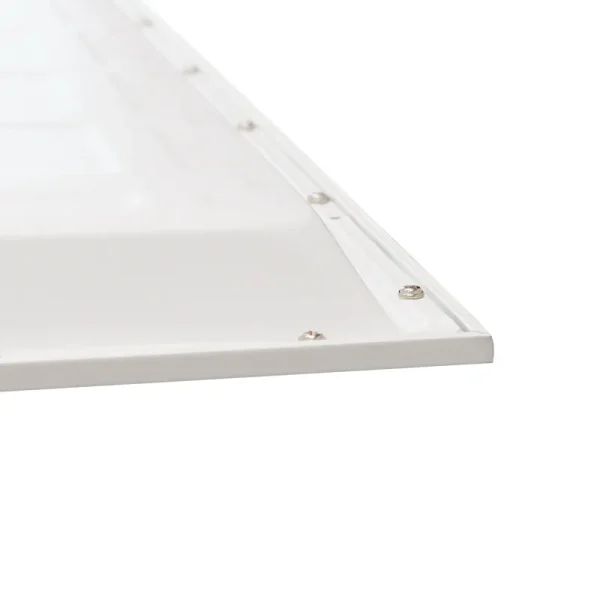

  • Durable Metal Build: Efficient thermal management, ≥25,000-hour lifespan, backed by a 2-year warranty.
Categories: , , Brand:

General Specifications

ItemSpecification
RA≥80
R9>0
IP20
SDCM≦ 5
UGR﹤22
Input Voltage100-265V/ 165-265V
Frequency50/60Hz
PF≥0.5
Optical TypePS Diffuser
LED ChipSmalite Chips
Driver BrandQisen
MaterialMetal
Tilt / RotationFixed / Fixed
Beam Angle120°
CCT3000K/4000K/6500K
Color / FinishWhite

Model Comparison Chart

ModelTypePowerLuminous Flux
(lm)		Efficiency
(lm/w)		LifetimeWarranty
A11-GNN30H 2*2FT RecessedA11-GNN5959-50W50W4400110lm/w≥25,000h2 years
A11-GNN30H 2*2FT RecessedA11-GNN6060-50W50W4400110lm/w≥25,000h2 years
A11-GNN30H 2*2FT RecessedA11-GNN603603-50W50W4400110lm/w≥25,000h2 years
A11-GNN30H 2*2FT RecessedA11-GNN6262-50W50W4400110lm/w≥25,000h2 years
A11-GNN30H 2*2FT SurfaceC08-GNN6060-50W50W4400110lm/w≥25,000h2 years
A11-GNN30H 1*4FT RecessedA11-GNN29119-50W50W4400110lm/w≥25,000h2 years
A11-GNN30H 1*4FT RecessedA11-GNN30120-50W50W4400110lm/w≥25,000h2 years
A11-GNN30H 1*4FT RecessedA11-GNN3031213-50W50W4400110lm/w≥25,000h2 years
A11-GNN30H 1*4FT     SurfaceA11-GNN3031213-50W50W4400110lm/w≥25,000h2 years
A11-GNN30H 2*4FT  RecessedC08-GNN59119-100W100W8800110lm/w≥25,000h2 years
A11-GNN30H 2*4FT  RecessedC08-GNN6031213-100W100W8800110lm/w≥25,000h2 years
A11-GNN30H 2*4FT  SurfaceC08-GNN60120-100W100W8800110lm/w≥25,000h2 years
