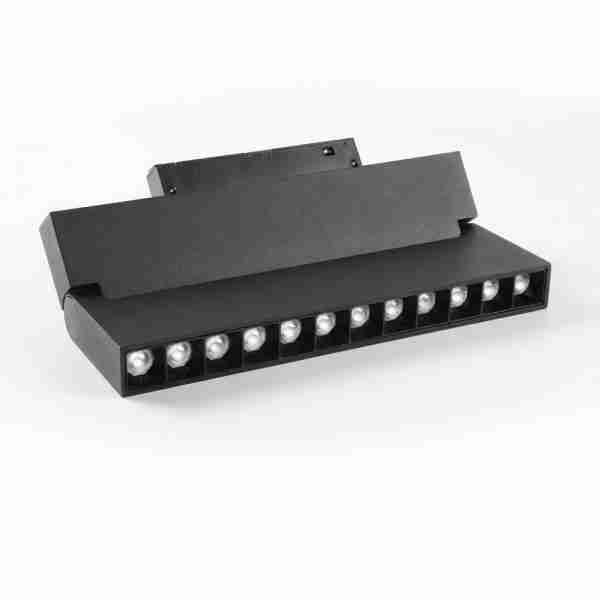

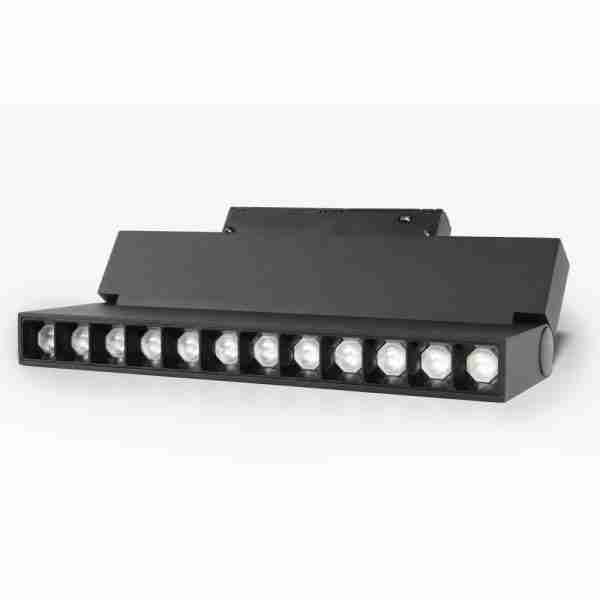

The MT20-AGR Series magnetic adjustable grille light is designed for accent and wall-washing applications within modern magnetic track systems, combining compact grille aesthetics with directional flexibility to enhance merchandise, textures, and architectural details in commercial interiors.
● Platform-Based Product Design: Compact adjustable grille lighting platform with practical power options 6W / 12W, optimized for accent lighting layouts within standardized 20mm magnetic track systems.
● Stable Electrical Performance: DC48V low-voltage magnetic power supply ensures safe and stable operation, designed for ≥30,000h lifetime with 3-year warranty.
● Professional Light Quality: CRI Ra ≥90 (R9 >0) with controlled color consistency, using San’an COB LED combined with PC lens to deliver focused, clean beam output suitable for display and feature lighting.
● Flexible Optical & Installation Options: 20mm magnetic track compatibility with tool-free installation, 90° tilt adjustable structure for precise aiming, selectable beam angles (15° / 24° / 36°), and DIP-3CCT switch for on-site color temperature selection.
● Engineered for Long-Term Use: Aluminum housing with reliable thermal management supports continuous operation in retail, gallery, and commercial environments.
● Certified & Project-Ready: CE / EMC / LVD / RoHS compliant, with IES files available for professional lighting design and project specification.
| Item | Specification |
|---|---|
| RA | ≥90 |
| R9 | >0 |
| IP | 20 |
| SDCM | ≤5 |
| Input Voltage | DC48V |
| Optical Type | PC LENS |
| LED Chip | San'an COB LED |
| Track Type | Magnetic Track 20mm |
| Material | Aluminum |
| Tilt / Rotation | Tilt 90° / Fixed |
| CCT | 3CCT |
| Color / Finish | Black |
| Lifetime | ≥30,000h |
| Model | Power | Beam Angle | Luminous Flux (lm) | Efficiency (lm/w) |
|---|---|---|---|---|
| MT20-AGR-CCT-6W | 6W | 24°（15°/36°） | 510lm | 85lm/w |
| MT20-AGR-CCT-12W | 12W | 24°（15°/36°） | 1020lm | 85lm/w |
