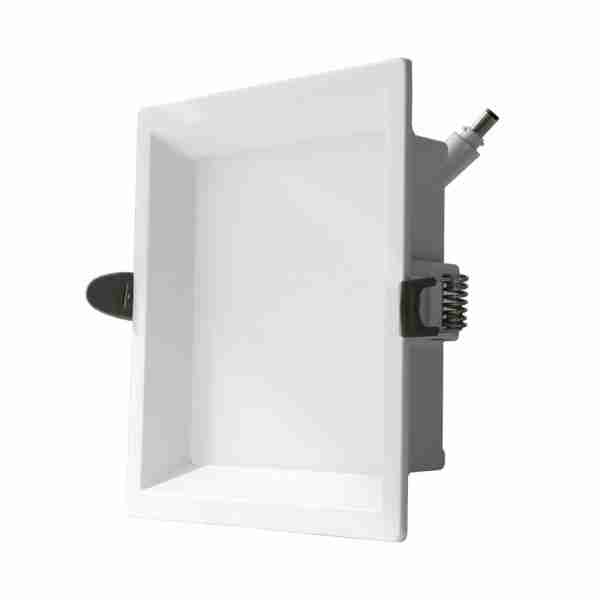

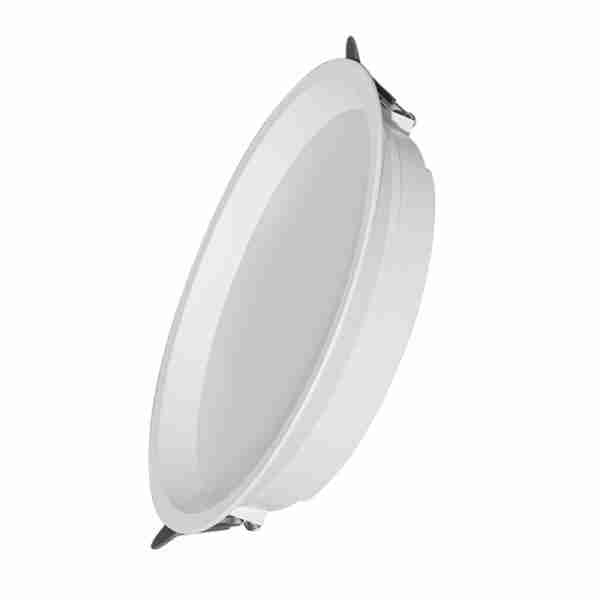

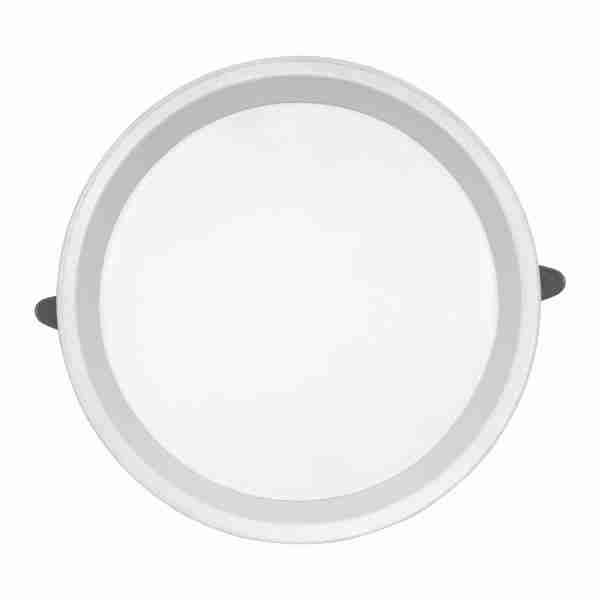

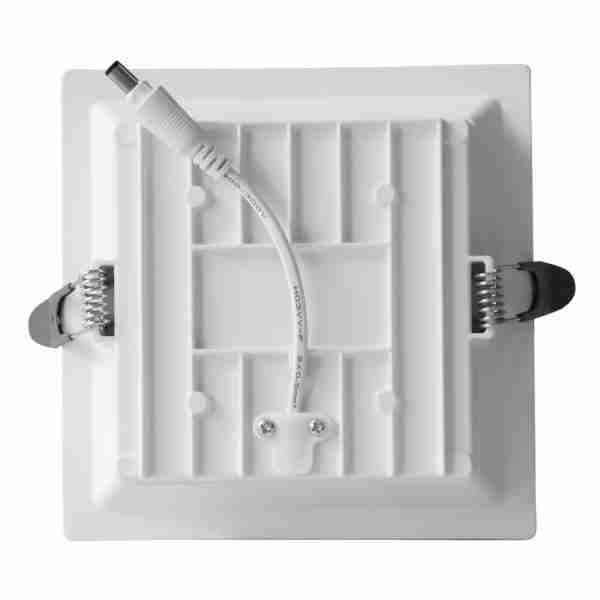

D02 Series | Deep Anti-Glare Recessed SMD Downlight

The D02 Series stands out with its specialized deep anti-glare structure, significantly reducing visual fatigue in professional environments. Powered by LiFud drivers and San’an chips, it offers an uncompromising balance of efficiency and lighting quality.

  • Premium LiFud Driver: Integrated with a high-end LiFud isolated driver for industry-leading electrical stability, surge protection, and a flicker-free experience.
  • BMTC High-Efficiency Chips: Features BMTC SMD LEDs delivering a system efficacy of 80 Lm/W with CRI ≥ 80, ensuring bright and vibrant color rendering.
  • Integrated CCT Switching: Built-in CCT switch allows seamless toggling between 3000K/4000K/6500K, providing maximum ambiance flexibility and reducing inventory SKU pressure.
  • Advanced Anti-Glare Structure: The deep-recessed housing design shields the light source from direct view, creating a soft and comfortable lighting environment for high-end interiors.
  • Engineering-Grade Thermal Build: Utilizes a Die-Casting Aluminum housing to ensure rapid heat dissipation, effectively prolonging the lifespan of all electronic components.
  • Comprehensive Project Specs: Scalable power from 7W to 24W, with standard cut-outs ranging from 75mm to 200mm (3″”-8″”). Available in both Round and Square profiles.

General Specifications

ItemSpecification
RA≥80
R9>0
IP20
SDCM<5
Surge Protection1KV
Input Voltage220-240V
Frequency50/60Hz
PF≥0.5
Optical TypePC Diffuser
LED ChipSan'an
Driver BrandLifud Driver
MaterialAluminum
Tilt / RotationFixed / Fixed
DimmableDIP
CCT3CCT
Lifetime≥50,000h
Warranty5 years

Model Comparison Chart

ModelProducts Size
(mm)
Hole Size(mm)PowerBeam AngleLuminous Flux
(lm)
Efficiency
(lm/w)
D02R-CE75D-7W100757W120°560 LM80lm/W
D02R-CE100D-12W12010012W120°960 LM80lm/W
D02R-CE125D-15W14512515W120°1200 LM80lm/W
D02R-CE150D-18W17015018W120°1440 LM80lm/W
D02R-CE200D-24W22520024W120°1920 LM80lm/W
D02S-CE75D-7W10075*757W120°560 LM80lm/W
D02S-CE100D-12W120100*10012W120°960 LM80lm/W
D02S-CE125D-15W145125*12515W120°1200 LM80lm/W
D02S-CE150D-18W170150*15018W120°1440 LM80lm/W
D02S-CE200D-24W225200*20024W120°1920 LM80lm/W
