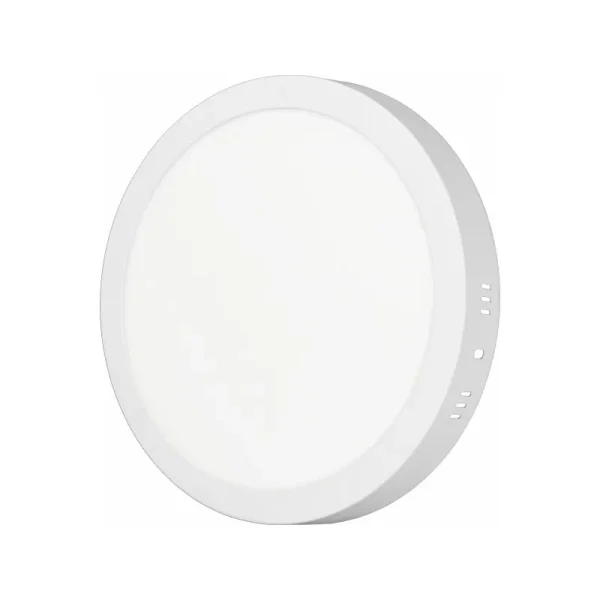

surface round
Reccesed square
Reccesed Round
surface square
surface round
the difference of the four product.
  1. surface round
  2. Reccesed square
  3. Reccesed Round
  4. surface square
  5. surface round
  6. the difference of the four product.

B01 Series | Ultra-Thin Professional CCT Panel Light

The B01 Series is an engineering-grade ultra-thin panel light designed for uniform illumination, flexible installation, and long-term reliability. Ideal for commercial and residential lighting applications.
  • Genuine Philips Driver with High Power Factor: Philips Driver, PF ≥ 0.95 with 1KV surge protection across 220–240V grids, ensuring reliable performance on demanding commercial electrical systems.
  • Optical-Grade Chip with Tight Color Consistency: San’an LEDs, CRI ≥ 80, SDCM ≤ 7, every unit on the ceiling matches.
  • Glare-Free, Even Illumination Across the Full Beam: PMMA LGP, 120° Premium PMMA light guide panel, higher light transmission and longer clarity retention than standard PS, distributes output evenly across a 120° beam angle, eliminating hot-spots and glare banding where visual comfort is non-negotiable.
  • One Fixture, Three Color Temperatures On-Site: DIP-CCT, 3000K / 4000K / 6500K, One SKU covers every ambiance requirement fewer line items on the purchase order, leaner warehouse stock.
  • Round or Square, Recessed or Surface, Six Wattages: 6W–24W, Φ120–Φ300mm Available in recessed and surface-mount configurations, in both round and square form factors, from 6W (Φ120mm) to 24W (Φ300mm).
  • Industry-Leading Lifespan with Full European Compliance: ≥50,000h, 5-Year Warranty, CE / UKCA.Full-aluminum housing with efficient thermal management sustains lumen output across a 50,000-hour rated lifespan.
  • Virtually Flush, Minimal Visual Footprint: 20mm Ultra-Slim Profile, At just 20mm body depth, B01 sits flush against the ceiling plane, a clean, unobtrusive disc that recedes into the architecture and lets the illuminated space take centre stage.
Categories: , , Tags: , , , , Brand:

General Specifications

ItemSpecification
RA≥80
R9>0
IP20
SDCM≤7
Surge Protection1KV
Input Voltage220-240V
Frequency50/60Hz
PF≥0.95
Optical TypePMMA LGP
LED ChipSan'an
Driver BrandPhilips Driver
MaterialAluminum
Tilt / RotationFixed / Fixed
Beam Angle120°
DimmableDIP-CCT
CCT3000K/4000K/6500K
Color / FinishWhite

Model Comparison Chart

ModelTypePowerLuminous Flux
(lm)		Efficiency
(lm/w)		LifetimeWarranty
QS-B01RReccesed Round6W-24W430lm-2160lm70 lm/W-100 lm//W≥50,000h5 years
QS-B01SReccesed Square6W-24W430lm-2160lm70 lm/W-100 lm//W≥50,000h5 years
QS-C01RSurface Round6W-24W430lm-2160lm70 lm/W-100 lm//W≥50,000h5 years
QS-C01SSurface Square6W-24W430lm-2160lm70 lm/W-100 lm//W≥50,000h5 years
